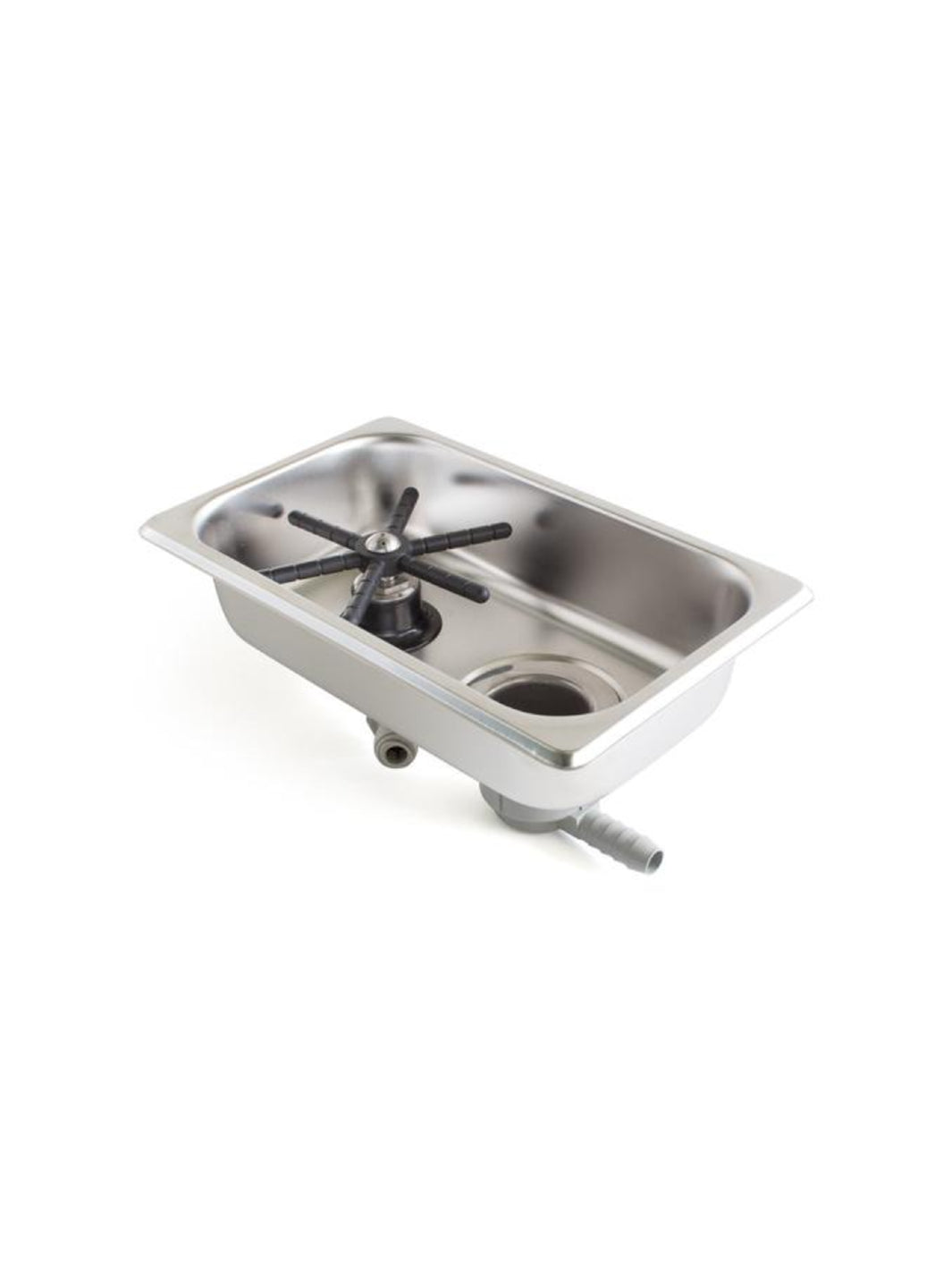

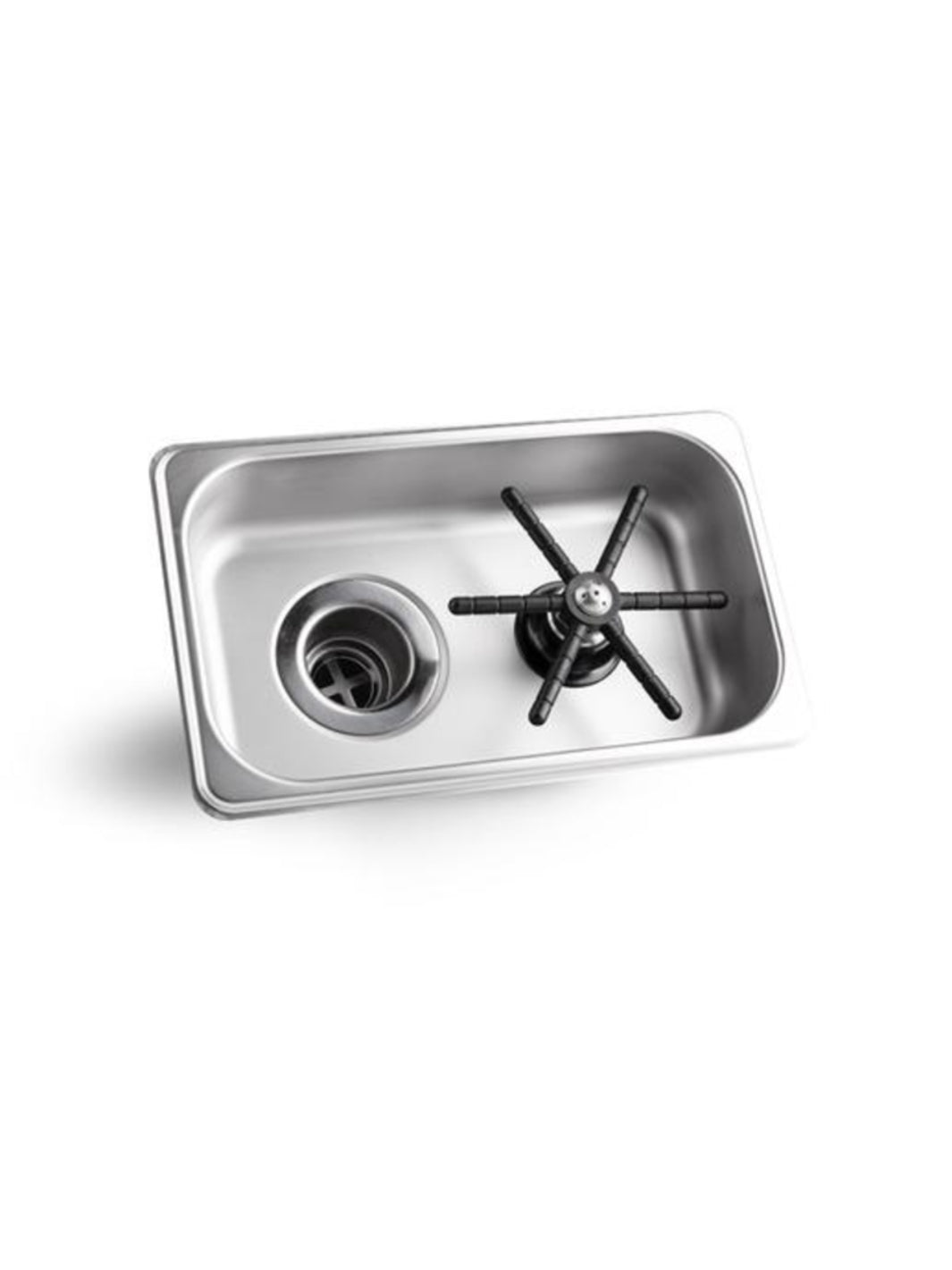

ESPRESSO PARTS Pitcher Rinser w/ Deluxe Drain (152x254mm/6x10in)

• Description
• Specs
• Method

• WASH, RINSE AND REPEAT

  Made with Stainless Steel and built to last! With this rinser from Espresso Parts, any vessel with a diameter from 1 to 4½ inches can now be rinsed in seconds. In most restaurants, coffee shops and cafes, the rinsing of glasses, shot glasses, pitchers and cups is a task that is repeated many times a day. Espresso Parts has developed the rinser to save you time and money, making the rinse process an effortless task.

  This Unit comes with the fittings to connect directly to a water and drain line upon installation. If you need the water and drain lines themselves and additional fittings, such as a back flow protector and tee to split off for a shared water source, we recommend purchasing the Pitcher Rinser Install Kit

• Now Certified by NSF International all rinser units conform to the requirements of NSF/ANSI 169 - Special Purpose Food Equipment and Devices.

  • Improved all stainless steel valve stem body for use with higher water pressure and increased reliability.
  • New deluxe 2" drain improves water volume capacity and now includes a drain filter/stopper.
  • Improved rinser star with a larger diameter and non-slip ridges
  • COLD WATER connector: 3/8" John Guest press fitting (hot water damages the seals)
  • Drain connector: 1/2" barb fitting (removable to hard plumb a 1-1/2" pipe)
  • Outside dimensions of the pan only: 10-1/4" by 6-3/8" (average flange is 5/16")
  • Recommended Water Pressure: 15-30 PSI
  • Made of stainless steel (edges can be sharp please use caution when handling pan)
  • Check with local plumbing codes before install. PVB, SVB or RP style backflow preventers are sometimes required.
  • NSF International Certifies that this product conforms to the requirements of NSF/ANSI 169 - Special Purpose Food Equipment and Devices.
  • This Unit comes with the fittings to connect directly to a water and drain line upon installation. If you need the water and drain lines themselves and additional fittings, such as a back flow protector and tee to split off for a shared water source, we recommend purchasing the Pitcher Rinser Install Kit
• 1. Take the pitcher
  2. Push it down on the rinser sprayer
  3. Let it rinse for a few seconds
  4. Take the pitcher off the rinser.

  We strongly suggest having product in-hand prior to cutting countertops. We are not liable for miscalculated or mis-cut countertops.

  Need help with installation or have questions, check out this handy Rinser Installation Tutorial
